The Kvaser PCIcanx II HS is a single channel, high speed CAN (controller area network) interface board for the PCI-X and PCI bus. It features an on-board microcontroller for offloading your main CPU and galvanic isolation for protection against voltage spikes.



 Major Features

Quick and easy plug-and-play installation - no switches.

Compliant with PCI 2.3.

The board fits in 3.3V PCI-X, and 3.3V and 5V PCI busses.

Fully software compatible with the discontinued PCIcan II boards.

Communicates with the PC through a fast DPRAM.

CAN Controller is a Renesas M16C.

Supports CAN 2.0 A and 2.0 B (active).

High-speed ISO 11898 compliant driver circuit, supports bit rates up to 1 Mbit/s.

Industry-standard 9-pin D-SUB connector.

Pin assignment according to CiA-DS102.

16 MHz CAN oscillator frequency.

Galvanic isolation between the CAN-controller and the CAN-driver.

The Kvaser PCIcanx II family boards can optionally be delivered with exchangeable CAN drivers, supporting e.g. single-wire CAN.

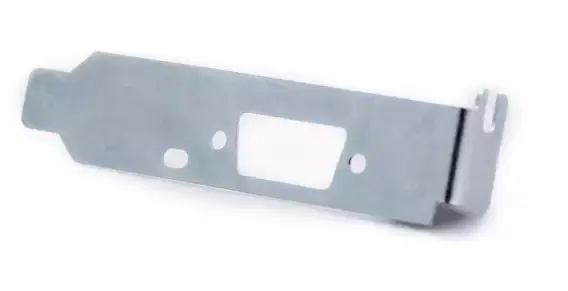

Includes free of charge low profile bracket.

Warranty

2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.
