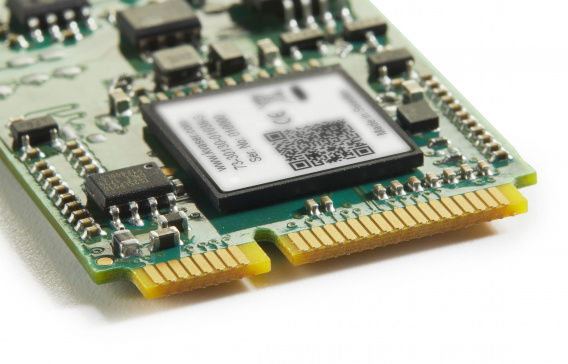

The Kvaser Mini PCI Express HS v2 is a small (30 x 51mm), yet advanced, real time CAN interface that adds one high speed CAN or CAN FD channel to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.

Major Features

Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD.
High transmission rate of up to 20000 messages/s.
Time stamp accuracy of 1 µs.
Galvanic isolation.
Suitable for industrial environments.
Low profile mini PCI Express-compliant 4-pin Molex connector provides CAN channel access.
Includes Molex to DSUB9 cable adapter.
Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
Operates over the industrial temperature range of -40 to +85°C.
Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS
board. Windows DLL library and examples included.
Supports Windows Vista or later.
Linux drivers and a dedicated SDK are available as a separate download.
Support for SocketCAN, see elinux.org for details.
Extended operating temperature range from -40 to 85 °C.
Note: Kvaser's already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.

Warranty

2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.
