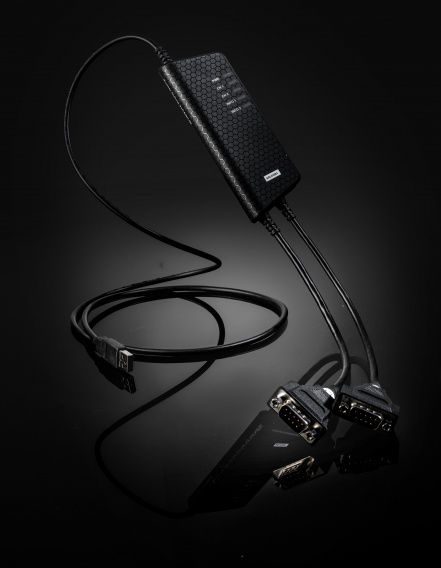

Kvaser Hybrid 2xCAN/LIN

SKU: 00965-3

£570

ADD TO CART

QUANTITY

DESCRIPTION
TECH SPECS
DOWNLOADS

Kvaser Hybrid 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN. This makes the Kvaser Hybrid 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!

With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.



Major Features

  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Capable of sending up to 20000 messages per second, per CAN channel.
  • Supports CAN FD up to 5Mbit/s (with proper physical layer implementation).
  • Quick and easy plug-and-play installation.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • USB powered (bus V+ reference required for LIN).
  • LEDs indicate device status and bus activity.
  • Galvanically isolated CAN buses.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.
  • Support for SocketCAN, see elinux.org for details.

Warranty

  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Software

  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Kvaser Hybrid 2xCAN/LIN
Kvaser Hybrid 2xCAN/LIN is a flexible, dual channel interface that allows each channel to be assigned independently as CAN or LIN. This makes the Kvaser Hybrid 2xCAN/LIN a must-have ’universal interface’ for every engineer involved in automotive communications!
With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.

Major Features
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s and LIN 2.2A (ISO 17987 Part 1-7) up to 20 kbit/s.
  • Capable of sending up to 20000 messages per second, per CAN channel.
  • Supports CAN FD up to 5Mbit/s (with proper physical layer implementation).
  • Quick and easy plug-and-play installation.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • USB powered (bus V+ reference required for LIN).
  • LEDs indicate device status and bus activity.
  • Galvanically isolated CAN buses.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Supplied with Kvaser CANlib and Kvaser LINlib, free software APIs that are common to all Kvaser hardware and enable the channels to be configured intuitively and fast.
  • Extended operating temperature range from -40 to 85 °C.
  • Support for SocketCAN, see elinux.org for details.
Warranty
  • 2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.
Support
  • Free Technical Support on all products available by contacting support@kvaser.com.
Software
  • Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Kvaser Hybrid 2xCAN/LIN

SKU: 00965-3
£570.00Price
