Kvaser Air Bridge Light HS (CE)

SKU: 00808-3

£730.00

ADD TO CART

QUANTITY

DESCRIPTION
TECH SPECS
DOWNLOADS

Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge that achieves predictable latency, without sacrificing stability or range. Comprising a preconfigured pair of plug-and-play units to rapidly exchange raw CAN data, the Kvaser Air Bridge Light HS is designed for environments or situations that make wired connection unsuitable or challenging e.g. between two moving parts that are connected by CAN.

Major Features


  • ​​​​​​8000 messages per second, each time-stamped with 100 microsecond accuracy

  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers

  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.

  • Galvanic isolation, previously a more expensive option on Kvaser's original Leaf Light, now comes as standard on the Leaf Light v2, enhancing protection from power surges or electrical shocks.

  • Low current consumption (90 mA) reduces power drain from your laptop.

  • Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.


There are two versions: Kvaser Air Bridge Light HS (00808-3) is approved for the European Union, while Kvaser Air Bridge Light HS (FCC) (01008-6) complies with US certification. Both share the same functionality but have different radio transmission schemes due to regulatory differences.

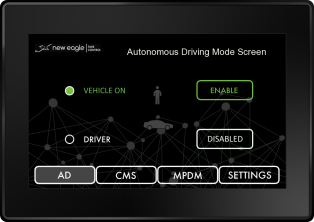

The VeeCAN 700 is 7" a fully waterproof capacitive touchscreen display. It features a WVGA 800 x 480 TFT LCD color display, and 1 USB port on the rear. The VeeCAN 700 also supports 1 analog input, 1 digital input, 1 relay output, 2 CAN connections, as well as Ethernet and Video connections.

The Raptor VeeCAN700 has 2 CAN channels for monitoring, datalogging, or transmitting commands from the display over the CAN bus. In relatively simple applications with only CAN-based sensors and actuators, the Raptor VeeCAN700 can even act as a low-cost, all-in-one display/controller solution.

With its superior I/O and Durable Design, the VeeCAN 700 is a great addition to any application where components have to withstand harsh conditions.

For volume discounts, plase get in touch.

RAPTOR VEECAN 700 DISPLAY

SKU: DISP-VC700-2003
£1,200.00Price

>10 Volume Discount

Quantity
